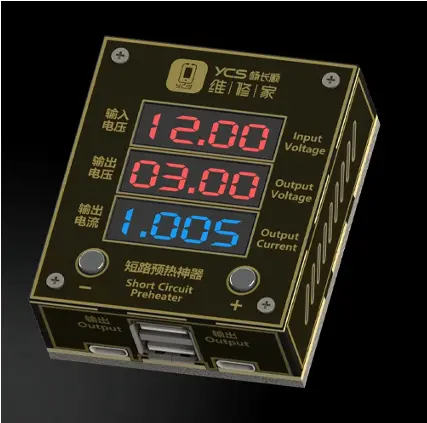

The YCS Short Circuit Preheating Device is a professional-grade diagnostic and repair tool set designed for mobile phone motherboard technicians who need to quickly locate and repair short circuit faults . This high-power system combines the principles of current heating breakdown with precision capacitance detection to allow technicians to inject voltage and "burn" a short circuit, forcing the faulty component to heat up for visual identification using thermal cameras or touch[ citation:8].

Key Features

• High Power Short Circuit Breakdown (Burning) Function – Delivers adjustable high current output (e.g., in the YCS 3060 model: up to 30V and 6A) specifically designed to safely "burn" or heat up shorted components, making them instantly identifiable. This transforms guesswork into visual confirmation, usually with the assistance of thermal imaging or alcohol evaporation testing .
• Integrated DC Power Supply for Board Maintenance – Combines the functions of a short circuit burner with a standard adjustable DC power supply; technicians can use the same device for both fault injection during repair and standard powering of motherboards for functional current testing (mA readings).
• Rapid Heating & Breakdown Technology – Engineered for quick fault localization; the high current causes the specific defective chip or capacitor to heat up while healthy components remain cool, dramatically reducing troubleshooting time.
• Voltage/Current Protection & Limiting – Features critical safety features including overcurrent protection and adjustable current limiting; this allows the technician to "burn" a short circuit without spreading damage to intact tracks or the power supply unit itself by preventing uncontrolled current draw.
